High Flex Cat 5e Cable Specifications
Overall Diameter | .245 Inches |
Max Temperature | 80° C |
Jacket Color | Black |
UL/CSA Rated | Yes |
Min. Bend Radius | 2.45 Inches (Static), 3.68 Inches (Dynamic) |
Intercon-1 > Product Catalog > Gigabit Ethernet > Industrial High Flex and Static grade Gig E Assemblies

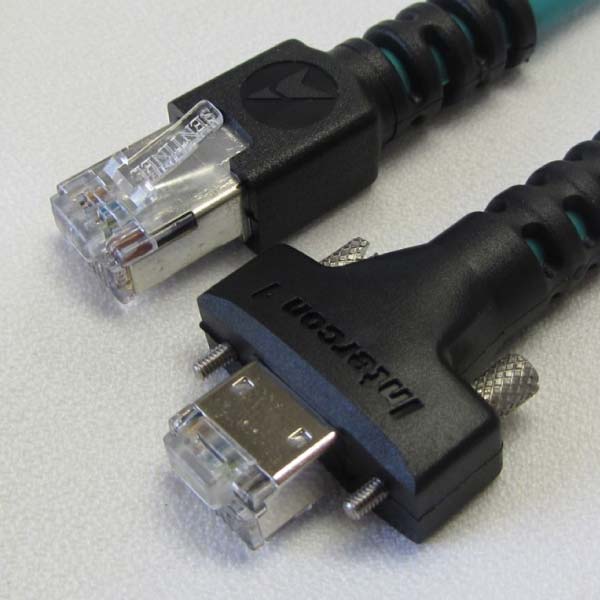

Our Industrial High Flex Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. This is a solution for brutal applications that require more than the traditional cable can offer. Double shielded cable ensures the best electrical performance. Intercon’s industrial high flex Cat 5e cable has exceeded 12 million + flex cycles in both tick tock and rolling torsion testing. The durable jackets provide an additional protection from elements such as water, oil, and abrasion. Our unique right/left and up/down strain relief orientations provide a solution for those applications where limited space exists behind the camera. The low profile right angle orientations eliminate the stress that can be placed on the cable, connector and camera when using a traditional straight assembly in these tight areas. The thumbscrew-locking feature ensures that the interface will remain secure despite motion and vibration.
Overall Diameter | .245 Inches |
Max Temperature | 80° C |
Jacket Color | Black |
UL/CSA Rated | Yes |
Min. Bend Radius | 2.45 Inches (Static), 3.68 Inches (Dynamic) |
Overall Diameter | .235 Inches |
Max Temperature | 75° C |
Jacket Color Blue | Blue |
UL Rated | Yes |
Min. Bend Radius | 2.35 Inches |
Overall Diameter | .275 Inches |
Max Temperature | 75° C |
Jacket Color | Teal |
UL Rated | Yes |
Min. Bend Radius | 2.75 Inches (Static), 4.13 Inches (Dynamic) |
Find out how we can meet your needs with cables and assemblies custom designed for your application.
